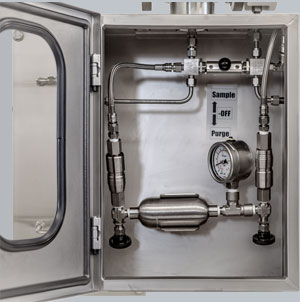

Combined Sampling Systems SSO-C
Manual, continuous, closed sampling systems for liquid and gaseous samples for a wide range of applications. These systems will take emission-free, representative samples while providing operator safety. Easy to install and to operate with the possibility of advanced versions. To meet the customer needs we can combine the system with Inline Sampling Valves as well as Sampling Systems and add various options and accessories.
Main features
• Closed sampling systems for liquid and gaseous media
• Additional safety for operator and environment
• Contamination-free sampling of toxic media
• Forced control through functions
"Shut – Sample – Purge"
• Sampling at a high system pressure
• Minimization of handling errors
• Easy operation and purge |
|
 |
Technical data
Systems
|
SSO-C
SSO-S
SSO-P |
Combinded systems with inline sampling valves
Sampling station with forced control
Sampling panel for multiple sampling |
| Version |
DIN, ISO, ANSI |
| Sizes |
DN8/¼" – DN25/1" |
| Pressure |
PN16, PN25, PN40, ANSI 150lbs, ANSI 300lbs |
| Connections |
Flange / Thread |
| Materials |
Stainless steel 1.4404, AISI 316, AISI 316L |
| Operating conditions |
(depending on material selection) |
| Pressure |
1 mbar up to 124 bar |
| Temperature |
-100°C up to +300°C |
Options
| Installation |
cabinet, container, sampler |
| Materials |
Monel 400, Teflon lined, Hastelloy C, Titanium Grade 2 |
| Connections |
upon customer request |
Additions
|
mobile sampling cylinder
fixed pre-metering container
Safety cabinets made of stainless steel or Polypro
Needle adapters made of stainless steel or Hastelloy C
Heating- or cooling jacket
Activated carbon filter |
Detailed specification/options on request.
|
|
|
