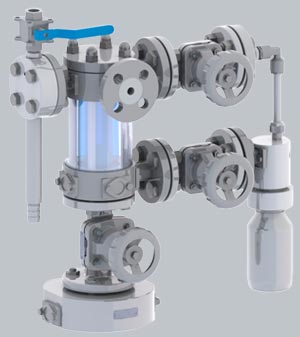

Manual Reactor Sampling Systems SRS-P-E, with Ejector
Manual system for safe, representative and closed-system sampling of aggressive or toxic liquids and suspensions from reactors and vessels – quick, reliable and safe.
Main features
• Simple, safe sampling from tanks and reactors
• Application-driven system specification
• Cavity-free design for representative sampling
• Self-draining, compact design
• Well-engineered system for attachment of additional components
• User-friendly operation with utmost safety at all times
• Permanent process control prior to and during sampling |
|
 |
Technical data
Systems
|
SRS-P
SRS-P-E
SRS-P-P |
Standard version, fully lined, manually operated
Manually operated, with suction nozzle (ejector)
Automated, with air-driven diaphragm pump |
Base flange
|
DN25 – DN100
PN16 |
1" – 4"
ANSI 150lbs |
| Sampling volume |
150 ml / 250 ml |
| Linings |
PFA, PFA-AS (conductive) |
| Hollow ball |
PTFE |
| Glass cylinder |
Borosilicate |
| Safety shield |
PMMA-XT (acrylic glass) |
| Ball seat |
FFPM (Perfluoro elastomer) |
| Operating conditions |
(depending on material selection) |
Pressure
|
up to 16 bar main valve
up to 10 bar sight glass |
| Temperature |
-40°C up to +200°C |
| Vacuum |
500 mbar abs. (at suction height of approx. 3 m) |
Options
Sampling
|
Sampling valve SIV with deadman lever
Sampling valve SIV with handwheel lateral, spring to close |
| Measurements top |
pH/temperature/redox |
Additions
|
Safety cabinet
Needle adapter
Piston injector |
Detailed specification/options acc. to the data sheet.
|
|
