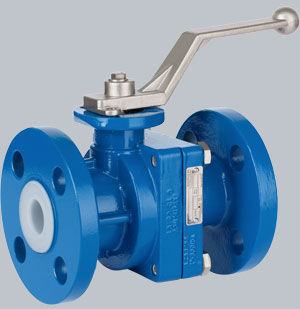

Ball Valves SBV 300 lbs
Fully lined Ball Valves for shut-off and control of corrosive, permeating liquids or gaseous media.
Main features
• Two-piece body, metal-to-metal joint
• Anchored lining with positive locking to body
• Dynamic, maintenance-free shaft sealing acc. to TA-Luft
• One-piece ball/shaft, blow out proof, core of SS Duplex
• Rated breaking point outside of valve
• Bodies with optional flange connections PN40 as well as ANSI Class 150
• Ball options such as V-port, C-port, with pressure relief hole
• ISO top flange for direct mounting of pneum. quarter turn actuators |
|
 |
Technical data
| Version |
ANSI |
|
Sizes
|
1" – 3"
full port |
|
Flanges
|
ASME B16.5 RF
ANSI 300lbs |
|
| Face to face |
ASME B16.10 |
|
| Body |
ASTM A216 WCB |
|
| Lining |
PFA, PFA-AS (conductive) |
| Ball |
PFA, PFA-AS-encapsulated (conductive) |
| Operating conditions |
(depending on material selection) |
| Pressure |
up to 50 bar |
| Temperature |
-40°C up to +200°C |
Options
| Body |
Stainless steel casting 1.4408 |
AISI 316 CF-8M |
| Lining |
ETFE |
| Ball |
PVDF, ETFE, SS Duplex solid, Titanium Grade 2, Hastelloy C,
V-Port, C-Port |
| Handlever |
Padlock |
Detailed specification/options acc. to the data sheet.
|
|
