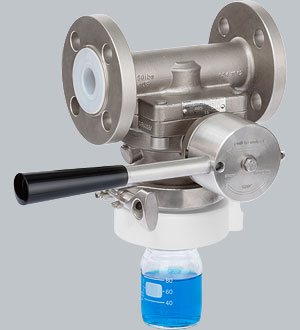

Sampling Ball Valves SSB
Sampling Ball Valves fully lined or in stainless steel with full port for safe and defined sampling with no process interruption. Sampling of corrosive media and process media with solids out of pipelines and vessels.
Main features
• Body lined or fully made of stainless steel
• Easy and safe operation, nonpressurized sampling
• Horizontal or vertical installation
• Defined sampling volume
• Extraction of smallest samples
• Full port design, easy cleaning (piggable)
• Sampling from vacuum systems
• Interruption of system pressure through pressure lock
• Simple automation with time control
• Sampling unit for installation onto vessels |
|
 |
Technical data
| Version |
DIN / ISO |
ANSI |
| Sizes |
DN15 – DN150 |
½" – 6" |
Flanges
|
EN 1092-1 B1
PN16 |
ASME B16.5 RF
ANSI 150 lbs |
| Face to face |
EN 558-1 range 20 |
ASME B16.10 |
| Body |
Stainless steel casting 1.4408 |
AISI 316 CF-8M |
| Lining |
PFA, PFA-AS (conductive) |
| Ball/Ball seats |
ETFE/PFA, PFA-AS/PTFE-AS (conductive), SS316/PTFE |
| Operating conditions |
(depending on material selection) |
| Pressure |
1 mbar up to 16 bar |
| Temperature |
-40°C up to +150°C (lined) 200°C (unlined) |
Options
| Body |
Butt weld ends, clamp connection |
| Ball/liner |
PFA/PTFE, stainless steel 1.4404, Hastelloy C, Titanium Grade 2 |
| Flanges |
PN40, ANSI 300lbs, JIS 10K, with groove acc. to DIN 2512 Form N |
Additions
|
Purge connection
Lock
Block flange as per customer specification for installation onto vessels
Safety cabinet with window glass plates - ESG float glass
Needle adapter made of stainless steel or Hastelloy C
Adapter with metal safety basket, incl. spring loaded PP plate
Bottle support with PP plate, height-adjustable
Activated carbon filter
Pneumatic quarter turn actuator for automated sampling |
Detailed specification/options acc. to the data sheet.
|
|
