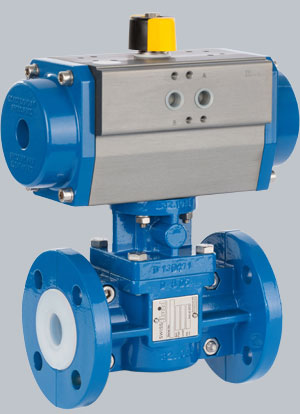

Cylindrical Plug Valves SCP
Fully lined process valves for shut-off or throttling of corrosive, abrasive liquid or gaseous media.
Main features
• Two-piece body made of cast steel, top entry
• Dynamic, maintenance-free shaft sealing acc. to TA-Luft
• Cavity-free design, low torque, full port
• One-piece cylinder/shaft, blow out proof, core of SS Duplex
• Rated breaking point outside of valve
• Cylinder options such as V-port, with pressure relief hole
• Easy maintenance at severe service conditions
• ISO top flange for direct mounting of pneum. quarter turn actuators |
|
 |
Technical data
| Version |
DIN / ISO |
ANSI |
Sizes
|
DN15 – DN100
full port
|
½" – 2"
full port
3" – 6"
reduced port |
Flanges
|
EN 1092-1 B1
PN16 |
ASME B16.5 RF
ANSI 150lbs |
| Face to face |
EN 558-1 series 1 |
ASME B16.10 |
| Body |
Cast steel 1.0619 |
ASTM A216 WCB
|
| Lining |
PFA, PFA-AS (conductive) |
| Cylinder |
PFA, PFA-AS-encapsulated (conductive) |
| Operating conditions |
(depending on material selection) |
| Pressure |
up to 16 bar |
| Temperature |
-40°C up to +200°C |
Options
| Body |
Stainless steel casting 1.4408 |
AISI 316 CF-8M |
| Cylinder |
PVDF, ETFE, SS Duplex solid, Titanium Grade 2, Hastelloy C, V-Port |
| Handlever |
Padlock |
Detailed specification/options acc. to the data sheet.
|
|
